Low-Intensity Vacuum Infrared Heater

APPLICATIONS:

Industrial Heating Uses

• Warehouses

• Factories

• Auto repair shops

• Churches

• Gymnasiums

• Drying process

ADVANTAGES

• Annual natural gas and propane consumption savings of up to 25-35% compared with traditional warm air systems.

• No need for a heat-distribution system.

• High comfort level, recommended even in places with drafts and high ceilings.

• Easy maintenance, without moving parts such as fans or blowers.

• Simple to control with a commercial or digital thermostat.

• Superior efficiency thanks to direct heating; no loss of heat through piping.

• Reduced air stratification.

• Sensation of instant heat.

• Quiet operation.

HOW IT WORKS

A low intensity infrared heater unit heats by radiant heat. The energy is spread by radiation: its effect on the human body is rather like being exposed to the sun. Like the light from a lamp, infrared radiant heat is directional and warms every object in its path, depending on the nature of its surface. The infrared radiant heat traverses the ambient air without losing its energy until the moment it meets an object.

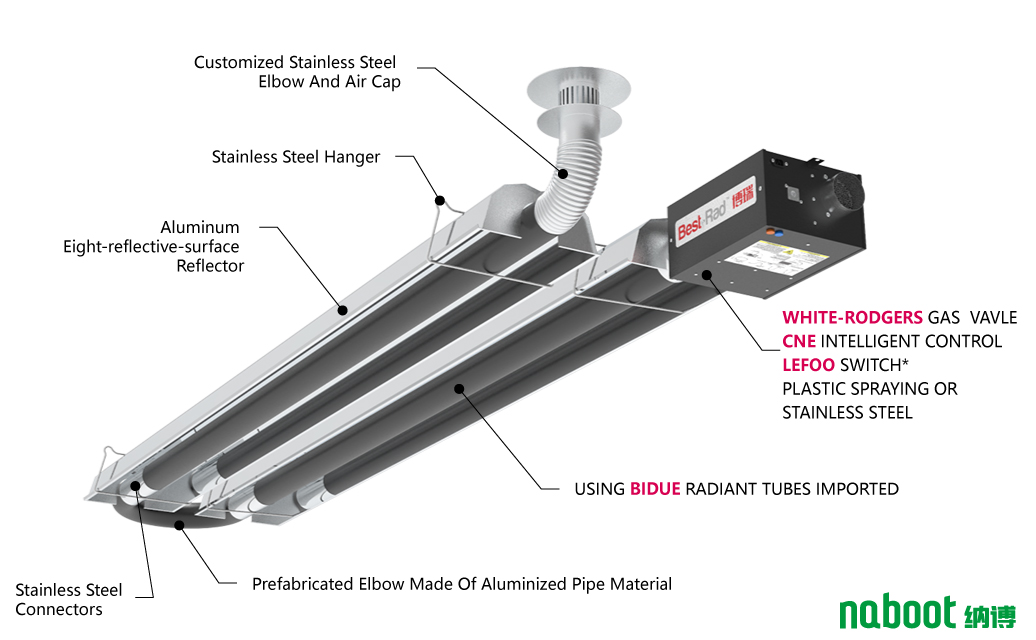

Primary and secondary air and gas mix into the burner cup to create a long flame combustion in the radiant tube heaters. The radiant surface temperature can reach 500°C but the far end radiant tube’s temperature is lower than 200°C.
